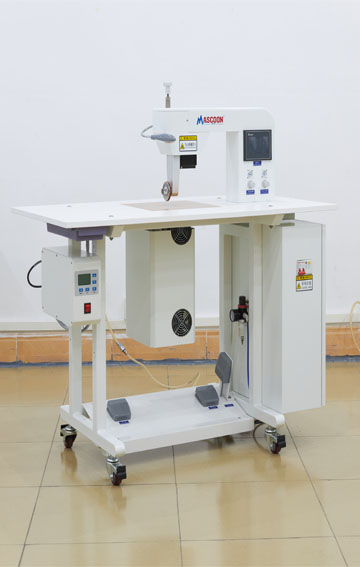

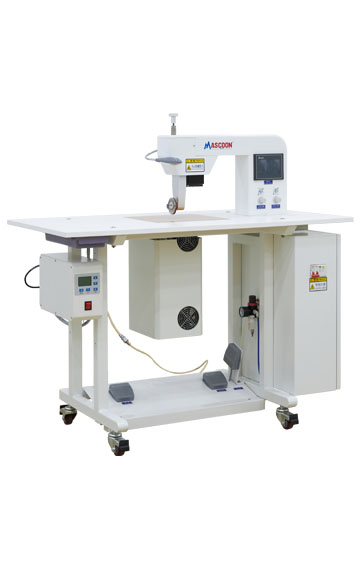

Ultrasonic seamless fusion edge cutting machine MS-20UC/28UC/35UC

Mascoon professional Ultrasonic seamless fusion edge cutting machine has three different models MS-20UC, MS-28UC and MS-35UC. According to your requirements and make different choices based on the main parameter list.

Power Supply Voltage:

1P/AC220V 50/60Hz

Compressed air:

5kg/cm²

Machine Size:

1160mm(L)*600mm(W)*1230mm(H)

Machine Weight:

80kg

GET A QUOTE

Professional and efficient ultrasonic seamless fusion edge cutting machine

Mascoon professional Ultrasonic seamless fusion edge cutting machine has three different models MS-20UC, MS-28UC and MS-35UC which provides you with a variety of choices. The power can be adjusted freely, suitable for cutting all kinds of cloth.
Diverse and enhanced production function

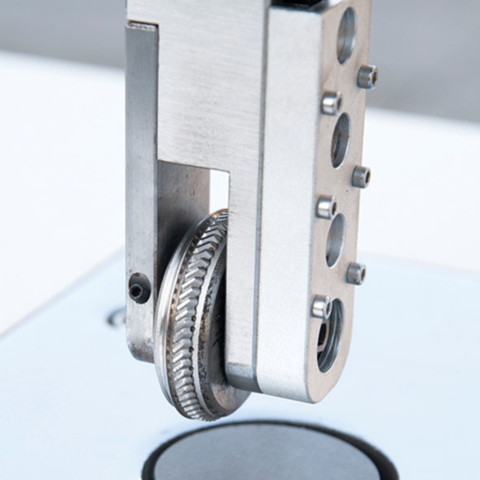

The slicing wheel of the machine can be moved from side to side to maximize the use of the bottom membrane. Adopting the PLC control and light touch type speed regulation, the specific speed of upper and lower die is accurate.
Customizable options and longer life

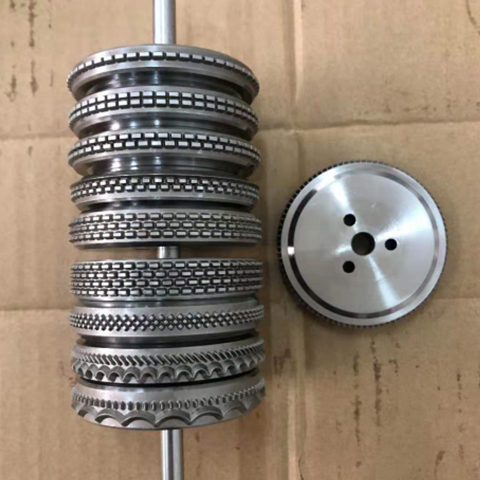

With free adjustment of pressure, Mascoon ultrasonic seamless fusion edge cutting machine greatly improve the service life of upper and lower die. And they could be customized according to the requirements of different patterns of cutting wheel.

Functions and Features

1. The machine uses 20KHz ultrasonic wave, automatic frequency chasing, large power, no noise.

2. The power can be adjusted freely, suitable for cutting all kinds of cloth.

3. With free adjustment of pressure, independent speed control, it's suitable for different fabric work.

Techspecs:

Model	MS-20UC	Power Supply Voltage	1P/AC220V 50/60Hz
Power	0.8KW	Ultrasonic Frequency	20Khz
Working Speed	0~20M/min	Compressed air	5kg/cm²
Machine Weight	80kg	Machine Size	1160mm(L)600mm(W)1230mm(H)

Model	MS-28UC	Power Supply Voltage	1P/AC220V 50/60Hz
Power	0.6KW	Ultrasonic Frequency	28Khz
Working Speed	0~8M/min	Compressed air	5kg/cm²
Machine Weight	80kg	Machine Size	1160mm(L)600mm(W)1230mm(H)

Model	MS-35UC	Power Supply Voltage	1P/AC220V 50/60Hz
Power	0.6KW	Ultrasonic Frequency	35Khz
Working Speed	0~8M/min	Compressed air	5kg/cm²
Machine Weight	80kg	Machine Size	1160mm(L)600mm(W)1230mm(H)

Watch Video:
