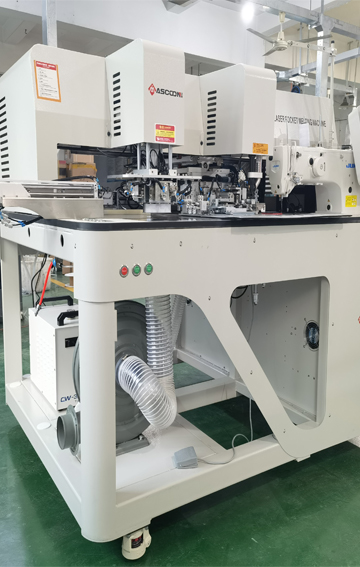

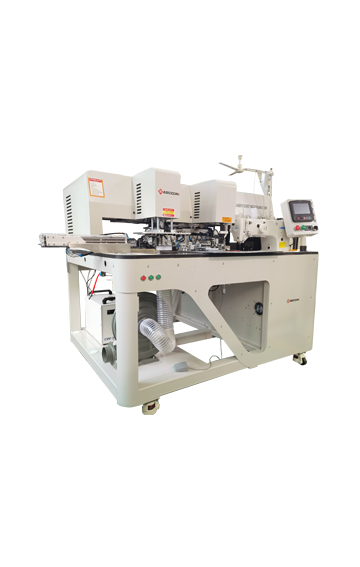

Full-Automatic Laser Pocket Opening&Sewing Machine MS-D2

Automatic laser opening garment pocket machine is an efficient and intelligent garment processing equipment, which has many advantages and characteristics. With the continuous development of the fashion industry and the trend of intelligence, the automatic laser opening clothing pocket machine has become the trend of the clothing industry.


Model:MS-D2  Voltage:220V

Power:1.5Kw    Machine Weight:950kg

HS Code:8452290000


  • What's automatic pocket opening&sewing machine?

    The automatic pocket opening&sewing machine,is also called automatic pocket welting machine or automtic pocket sewing machine.Compared to the traditional sewing method,automatic pocket sewing machine will be quicker and more effiency.With the continuous development of the fashion industry and the trend of intelligence, the automatic laser opening clothing pocket machine has become the trend of the clothing industry. In the future, the automatic laser opening clothing pocket machine will continue to develop, more intelligent, high efficiency, energy saving, environmental protection and safe and reliable. At the same time, the automatic laser opening clothing pocket machine will be combined with the Internet of Things, cloud computing and other new technologies to achieve intelligent production and management, to provide better support and guarantee for the rapid development of the fashion industry.




  • What are the features and advantages?

    High speed and high efficiency: Automatic pocket welting machine can quickly open the pocket with laser technology, one minute can handle dozens of pockets, greatly improving the production efficiency.

    Intelligent: Automatic pocket sewing machine adopts the advanced electronic control system that can automatically identify the size and shape of the pocket, automatically adjust the opening speed and strength to ensure the quality of the opening.

    High precision: The automatic laser opening garment pocket machine adopts laser technology, which can accurately control the opening position and size of the pocket, avoiding the error and instability of manual operation.

    Safe and reliable: automatic laser open clothing pocket machine using laser technology, will not produce open flame and heat, avoid the risk of fire and explosion, and simple operation, reduce the operating risk of workers.

    Environmental protection and energy saving: automatic laser clothing pocket machine does not need to use chemicals or other harmful substances, avoid environmental pollution, and can save energy, reduce production costs.




  • Why we should choose the automatic pocket welting machine?


    Firstly,this pocket sewing machine is fully automatic hemming/folding,free of press which could greatly improve the production capacity and save labor.

    Secondly,less limitation of the changes of pocket edge seams with automatic compression of the inner frame

    Thirdly,It can take the fabric automatically.


    Technical Parameters

    Voltage

    220V

    Power

    1.5Kw

    Air Source

    0.5Mpa

    Net Weight

    950kg

    Speed

    10-15s/pc

    Head Sewing Speed

    3000sti/min

    Equipped Sewing Head

    BrotherJuki and China Brand

    Machine Needle

    MT*190(12#/14#/16#

    Sewing Stitch Programming

    Input mode of touch screen

    Stitch Distance

    1.0-3.5mm

    Pressure Foot Rising Height

    60-80mm

    Sewing Pocket Range

    X-axis100mm-220mm,Y-axis 10-35mm

    Folding Method

    Four direction folding

    Opening

    100W laser

    Machine Size

    190*140*148cm

    HS Code

    8452290000






  • Look at the complete video how it's working
